#include <constraintinterface.h>

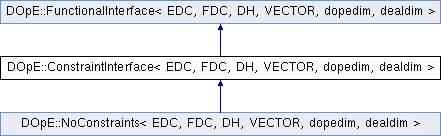

Inheritance diagram for DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >:

Public Member Functions
	ConstraintInterface ()

	~ConstraintInterface ()

virtual void	EvaluateLocalControlConstraints (const VECTOR &control, VECTOR &constraints)=0

virtual void	GetControlBoxConstraints (VECTOR &lb, VECTOR &ub) const =0

void	SetProblemType (std::string type, unsigned int num)

virtual void	PostProcessConstraints (ConstraintVector< VECTOR > &) const

Public Member Functions inherited from DOpE::FunctionalInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >
	FunctionalInterface ()

virtual	~FunctionalInterface ()

virtual double	ElementValue (const EDC< DH, VECTOR, dealdim > &edc)

virtual void	ElementValue_U (const EDC< DH, VECTOR, dealdim > &edc, dealii::Vector< double > &local_vector, double scale)

virtual void	ElementValue_Q (const EDC< DH, VECTOR, dealdim > &edc, dealii::Vector< double > &local_vector, double scale)

virtual void	ElementValue_UU (const EDC< DH, VECTOR, dealdim > &edc, dealii::Vector< double > &local_vector, double scale)

virtual void	ElementValue_QU (const EDC< DH, VECTOR, dealdim > &edc, dealii::Vector< double > &local_vector, double scale)

virtual void	ElementValue_UQ (const EDC< DH, VECTOR, dealdim > &edc, dealii::Vector< double > &local_vector, double scale)

virtual void	ElementValue_QQ (const EDC< DH, VECTOR, dealdim > &edc, dealii::Vector< double > &local_vector, double scale)

virtual double	PointValue (const DOpEWrapper::DoFHandler< dopedim, DH > &control_dof_handler, const DOpEWrapper::DoFHandler< dealdim, DH > &state_dof_handler, const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values)

virtual void	PointValue_U (const DOpEWrapper::DoFHandler< dopedim, DH > &control_dof_handler, const DOpEWrapper::DoFHandler< dealdim, DH > &state_dof_handler, const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values, VECTOR &rhs, double scale)

virtual void	PointValue_Q (const DOpEWrapper::DoFHandler< dopedim, DH > &control_dof_handler, const DOpEWrapper::DoFHandler< dealdim, DH > &state_dof_handler, const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values, VECTOR &rhs, double scale)

virtual void	PointValue_UU (const DOpEWrapper::DoFHandler< dopedim, DH > &control_dof_handler, const DOpEWrapper::DoFHandler< dealdim, DH > &state_dof_handler, const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values, VECTOR &rhs, double scale)

virtual void	PointValue_QU (const DOpEWrapper::DoFHandler< dopedim, DH > &control_dof_handler, const DOpEWrapper::DoFHandler< dealdim, DH > &state_dof_handler, const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values, VECTOR &rhs, double scale)

virtual void	PointValue_UQ (const DOpEWrapper::DoFHandler< dopedim, DH > &control_dof_handler, const DOpEWrapper::DoFHandler< dealdim, DH > &state_dof_handler, const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values, VECTOR &rhs, double scale)

virtual void	PointValue_QQ (const DOpEWrapper::DoFHandler< dopedim, DH > &control_dof_handler, const DOpEWrapper::DoFHandler< dealdim, DH > &state_dof_handler, const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values, VECTOR &rhs, double scale)

virtual double	BoundaryValue (const FDC< DH, VECTOR, dealdim > &fdc)

virtual void	BoundaryValue_U (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	BoundaryValue_Q (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	BoundaryValue_UU (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	BoundaryValue_QU (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	BoundaryValue_UQ (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	BoundaryValue_QQ (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual double	FaceValue (const FDC< DH, VECTOR, dealdim > &fdc)

virtual void	FaceValue_U (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	FaceValue_Q (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	FaceValue_UU (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	FaceValue_QU (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	FaceValue_UQ (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual void	FaceValue_QQ (const FDC< DH, VECTOR, dealdim > &fdc, dealii::Vector< double > &local_vector, double scale)

virtual double	AlgebraicValue (const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values)

virtual void	AlgebraicGradient_Q (VECTOR &gradient, const std::map< std::string, const dealii::Vector< double > * > &param_values, const std::map< std::string, const VECTOR * > &domain_values)

virtual std::string	GetType () const

virtual std::string	GetName () const

virtual bool	NeedTime () const

virtual void	SetTime (double) const

virtual dealii::UpdateFlags	GetUpdateFlags () const

virtual dealii::UpdateFlags	GetFaceUpdateFlags () const

virtual bool	HasFaces () const

virtual bool	HasPoints () const

void	SetProblemType (std::string type)

Protected Member Functions
std::string	GetProblemType () const

unsigned int	GetProblemTypeNum () const

Protected Member Functions inherited from DOpE::FunctionalInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >
std::string	GetProblemType () const

Detailed Description

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR, int dopedim, int dealdim>
class DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >

A template for an arbitrary control constraint. GlobalConstraints are dealt with as a Functional, hence all functions from Functionals are inherited.

Template Parameters

<EDC>	The ElementDataContainer object needed by the base class.
<FDC>	The FaceDataContainer object needed by the base class.
<DH>	The DoFHandler object used by the FunctionalInterface.
<VECTOR>	The vector class on which ControlVector<> is based.
<dopedim>	The dimension of the domain for the control.
<dealdim>	The dimension of the domain for the state.

Constructor & Destructor Documentation

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR , int dopedim, int dealdim>

DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >::ConstraintInterface ( )

inline

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR , int dopedim, int dealdim>

DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >::~ConstraintInterface ( )

inline

Member Function Documentation

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR , int dopedim, int dealdim>

virtual void DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >::EvaluateLocalControlConstraints	(	const VECTOR &	control,
		VECTOR &	constraints
	)

pure virtual

This function is used to evaluate all control constraints that are posed locally, i.e., those that can be evaluated by knowledge of the coefficient vector of the control.

Parameters

control	The control in which the constraints should be evaluated.
constraints	The vector in which the local constraints at the point control are stored. It is assumed that a control is feasible, if all entries of this vector are non positive. If any entry is positive, the control is considered to be infeasible.

Implemented in DOpE::NoConstraints< EDC, FDC, DH, VECTOR, dopedim, dealdim >.

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR , int dopedim, int dealdim>

virtual void DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >::GetControlBoxConstraints	(	VECTOR &	lb,
		VECTOR &	ub
	)		const

pure virtual

This function returns the lower and upper box constraints on the control. This means for a problem with box constraints The method EvaluateLocalControlConstraints computes (lb - control, control - ub)

Parameters

lb	The vector where the lower bound is stored. It is assumed that this vector is of the same size as the control.
ub	The vector where the upper bound is stored. It is assumed that this vector is of the same size as the control.

Implemented in DOpE::NoConstraints< EDC, FDC, DH, VECTOR, dopedim, dealdim >.

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR , int dopedim, int dealdim>

std::string DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >::GetProblemType ( ) const

inlineprotected

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR , int dopedim, int dealdim>

unsigned int DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >::GetProblemTypeNum ( ) const

inlineprotected

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR , int dopedim, int dealdim>

virtual void DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >::PostProcessConstraints ( ConstraintVector< VECTOR > & ) const

inlinevirtual

This function is called after the constraints are evaluated. The default is that nothing is done. However, certain Methods, e.g., penalty or barrier methods may need some Postprocessing to convert the constraint vector into the desired form.

Parameters

g	The vector to be transformed.

Reimplemented in DOpE::NoConstraints< EDC, FDC, DH, VECTOR, dopedim, dealdim >.

template<template< template< int, int > class DH, typename VECTOR, int dealdim > class EDC, template< template< int, int > class DH, typename VECTOR, int dealdim > class FDC, template< int, int > class DH, typename VECTOR , int dopedim, int dealdim>

void DOpE::ConstraintInterface< EDC, FDC, DH, VECTOR, dopedim, dealdim >::SetProblemType	(	std::string	type,
		unsigned int	num
	)

inline

The documentation for this class was generated from the following file:

/home/wollner/src/DOpE/ThingsForMaintainer/Releases/tmp/dopelib-3.0/DOpEsrc/interfaces/constraintinterface.h
